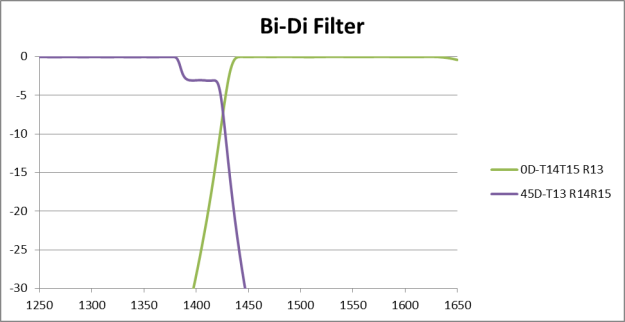

Bi-Di

发布时间:2019-06-19 浏览次数:256次

No. Parameter Unit T13R14R15 T14T15 R13 T14T15 R13 T1314R15
1 Operating Wavelength Range nm 1260-1620
2 A.O.I. degree 0 45 0 45
3 Passband (PB) nm 1260~1360 1470~1610 1470~1610 1260~1360
4 Reflect Band(RB) nm 1470~1610 1260~1360 1260~1360 1470~1610
5 Max. IL within PB dB <0.3
6 Ripple within PB dB <0.25
7 Isolation within RB dB >40 >25 >40 >25
8 Operating Temperature -40~85
9 Storage Temperature -40~85
10 Dimension(L*W*T) mm Can be customized
11 Thickness mm 0.1, 0.2, 0.25, 0.3, 0.5
