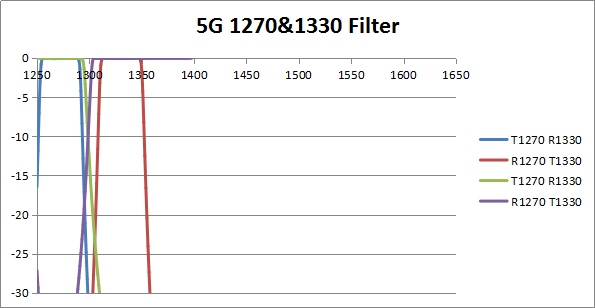

5G 1270&1330

发布时间:2019-06-19 浏览次数:171次

No. Parameter Unit T1270 R1330 R1270 T1330 T1270 R1330 R1270 T1330
1 Operating Wavelength Range nm 1250~1650
2 A.O.I. degree 0 0 45 45
3 Passband (PB) nm 1260~1280 1315~1370 1260~1290 1320~1340
4 Reflect Band 1(RB1) nm 1315~1660 1260~1290 1320~1350 1260~1290
5 Reflect Band 2(RB2) nm - - - -
6 Max. IL within PB dB <0.3
7 Ripple within PB dB <0.25
8 Isolation1 within RB1 dB >30 >30 >20 >20
9 Isolation2 within RB2 dB - - - -
10 Operating Temperature 0 ~ 70
11 Storage Temperature -40 ~ +85
12 Dimension(L*W*T) mm Can be customized
13 Thickness mm 0.1, 0.2, 0.25, 0.3, 0.5
