BS Filter

发布时间:2019-06-19 浏览次数:1342次

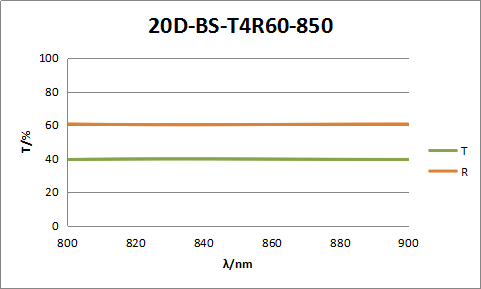

No. Parameter Unit BS-T40R60@850 BS-T60R40@1550
1 Operating Wavelength Range nm 830~870 1520~1580
2 A.O.I. degree 20 45
3 Passband (PB) % 40 60
4 Reflect Band(RB) % 60 40
5 Tolerance within PB % ±3 ±2
6 Isolation within RB % ±3 ±2
7 PDL within PB & RB dB - <0.5
8 Operating Temperature -40~85
9 Storage Temperature -40~85
10 Dimension(L*W*T) mm Can be customized
11 Thickness mm 0.25, 0.3, 0.5 0.25, 0.3, 0.5
