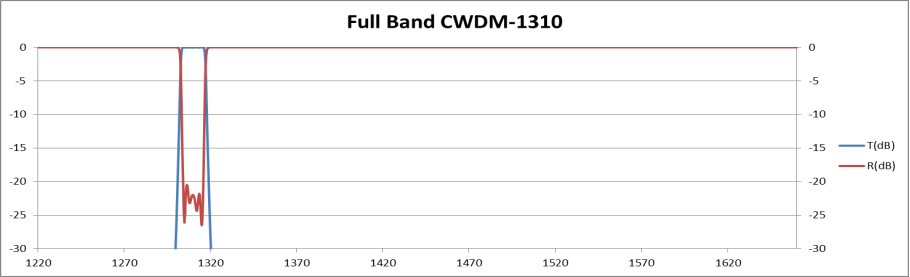

No. | Parameter | Unit | Full Band CWDM |
1 | Operating Wavelength Range | nm | 1260~1620 |
2 | Center Wavelength (λc) | nm |
1271/1291/1311/…/1571/1591/1611 1270/1290/1310/…/1570/1590/1610 |
3 | Center Wavelength (λc) tolerance @ -3.0dB | nm | ±0.5 |
4 | Channel Spacing | nm | 20 |
5 | Passband (PB) | nm | λc±7 |
6 | Reflect Band(RB) | nm | 1260~(λc-13) & (λc+13)~1620 |
7 | Adjacent Channel Isolation within RB | dB | >30 |
8 | Non-Adjacent Channel Isolation within RB | dB | >45 |
9 | Max IL within PB | dB | <0.3 |
10 | Ripple within PB | dB | <0.2 |
11 | Max Reflect IL within RB | dB | <0.2 |
12 | Ripple within RB | dB | <0.15 |
13 | Reflection Isolation within PB | dB | >13 |
14 | PDL within PB | dB | <0.1 |
15 | Reflection of Backside AR Coating | % | <0.2 |
16 | A.O.I. | degree | 1.8 |
17 | Dimension(L*W*T) | mm | 1.4(±0.05)*1.4(±0.05)*(0.7~1.1) |
