10GPON

发布时间:2019-06-19 浏览次数:161次

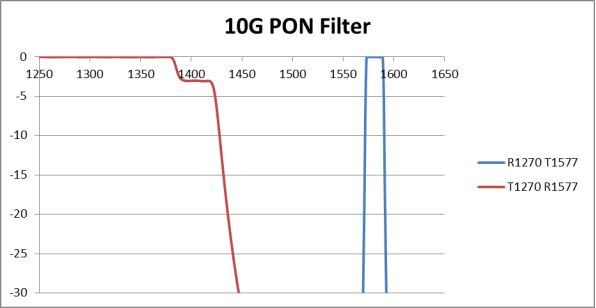

No. Parameter Unit R1270 T1577 T1270 R1577
1 Operating Wavelength Range nm 1250~1650
2 A.O.I. degree 0 45
3 Passband (PB) nm 1575~1585 1250~1360
4 Reflect Band 1(RB1) nm 1260~1568 1470~1610
5 Reflect Band 2(RB2) nm 1596~1620 -
6 Max. IL within PB dB <0.3
7 Ripple within PB dB <0.25
8 Isolation within RB1 dB >30 >35
9 Isolation within RB2 dB >30
10 Operating Temperature 0 ~ 70
11 Storage Temperature -40 ~ 85
12 Dimension(L*W*T) mm Can be customized
13 Thickness mm 0.1, 0.2, 0.25, 0.3, 0.5
